TTL Compatibility |
Canon E-TTL II |
Frequency: |
433.42 - 434.42 MHz, CE |
Channels: |
35 Channels over 5 Frequencies |
Antenna: |
2.7" (6.9 cm) rubberized with 180 degree swing |
Transmit output power: |
Less than 0.001 watt (1/1000 of a watt or 1 milliwatt) |
Range Performance: |
30 to 800 feet (10 to 240 meters) for E-TTL II triggering depending on flash used, antenna orientation and other variables. 30 to 1200 feet (10 to 365 meters) for basic triggering depending on flash used, antenna orientation and other variables. For more info, click here. |
|
Mounting: |
Hot Shoe, 1/4-20, lanyard, velcro |
|
Maximum Shooting Rate Frames per second (fps) |
8 fps for E-TTL II and normal triggering |

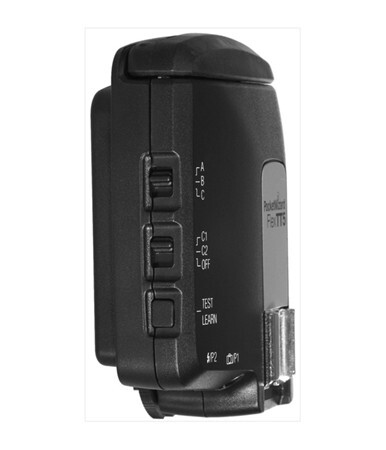

Power / Channel Switch |
OFF - C.2 - C.1 |
|
Zone Select Switch |
A-B-C (matches Canon slave groups) |
|
Status Indicator |
LED: Green, Amber, Red status indications |
|
Camera / P1 Port |
1/8" (3.5 mm) stereo miniphone for 2-stage remote camera triggering. Port Voltage Handling: up to 50 Volts, 100 milliamp continuous
Tip = Trigger
Ring = Pre-Trigger
Sleeve = Ground |
|
Flash / P2 Port |
1/8" (3.5 mm) mono miniphone. Port Voltage Handling: up to 200 Volts, 4 amps peak, 250 milliamp continuous, non-polarized |
|
Minimum Receive Contact Time |
Camera / P1 Port = 80 milliseconds Flash / P2 Port = 500us |
|
Voltage Present |
3.3 VDC (all pins) - safe for all cameras |
Hot Shoe voltage protection: |
Hot Shoe: up to 50V |
USB: |
USB Compliant 2.0, Mini-B Connector, 5VDC regulated, 100mA, Pin 1 Positive, Pin 4 Ground |
|
Operating Temperature |
Above -15° C (5° F) and below 50° C (120° F). |
|
Storage Temperature (without battery) |
Above -30 C (-22 F) and below 85 C (185 F) |
|
Construction |
High impact plastic, captive battery door
Hot Shoe made of glass reinforced resin |
|
Power
|
Two (2) AA (IEC:LR6) Alkaline recommended, other chemistries (NiMH, NiCAD, Lithium) allowed, USB |
Battery Life |
60 + Hours |
|
Dimensions |
3.6" (9.2 cm) long x 2.9" (7.3 cm) wide x 1.4" (3.6 cm) tall, antenna lowered |
|
Weight |
5.4 oz (153 grams) 3.8 oz (108 grams) without batteries |
|
Included in the box |
FlexTT5 Transceiver, USB cable, Two (2) AA batteries, Quick Guide |
|
ROHS Compliant |
